Most small UAS camera systems on the market are not built for defense-grade performance or compliance.The GreenSight EO/LWIR Camera addresses the key limitations of traditional payloads:
SWaP Challenge
SWaP Challenge
Competing sensors exceed acceptable size, weight, and power limits for small tactical platforms.
Integration Complexity
Integration Complexity
Off-the-shelf systems require heavy mounts or external power converters, reducing reliability and flight time.
Compliance Risk
Compliance Risk
Many popular camera modules rely on non-NDAA components, limiting their use in defense programs.
Mission Limitations
Mission Limitations
Poor low-light performance and low thermal resolution hinder ISR effectiveness.

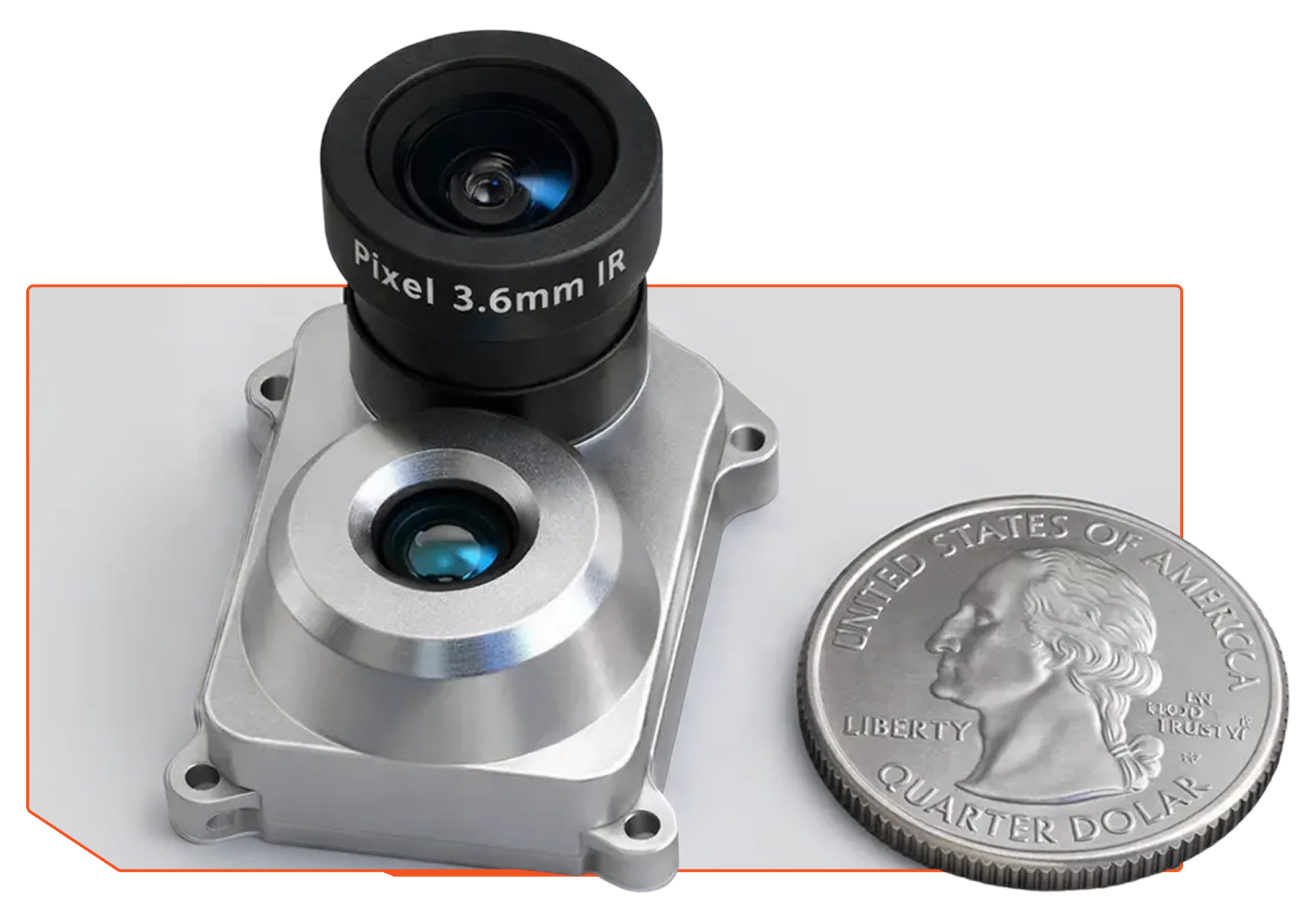

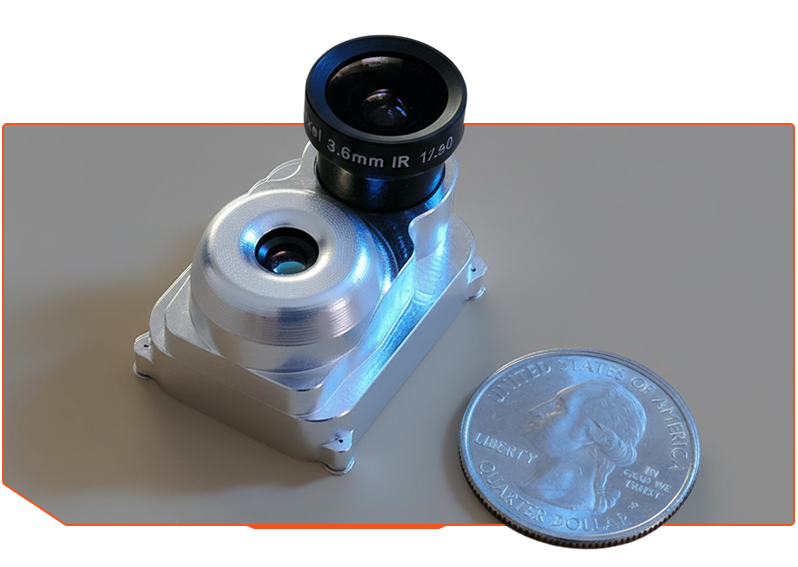

EO/LWIR Micro Camera
The GS EO/LWIR Micro Camera combines high-resolution electro-optical and long-wave infrared imaging in a single lightweight, ruggedized package. Built to meet the most demanding SWaPC requirements, it delivers exceptional clarity and situational awareness in both daylight and thermal environments.
Compatible with leading compute modules and open-source flight stacks, ensuring it fits seamlessly into your existing workflows and future upgrades.
12MP RGB low-light EO sensor + 320x240 LWIR thermal imager (640x480 upgrade planned Q1 2025)
Rugged aluminum housing with total weight of ~20g (up to 30g with 640 LWIR option)
EO: 4K @ 60 FPS and 1080P @ 240 FPS
LWIR: 60 FPS thermal video, ~50° FOV
EO FOV of approximately 80°, configurable at build to meet mission-specific needs
“Glueless” direct connection to GS UltraBlue avionics via rugged micro coax.
EO via MIPI CSI-2
LWIR via USB 2.0
Compatible with COTS mission computers through breakout boards or Raspberry Pi–compatible MIPI camera FFC.
Reduces need for additional cabling, converters, or integration hardware.
.avif)
Choose between an FPV Tilt Mount for forward-looking applications or a Flat Mount for fixed, downward-facing ISR configurations.
Available with MIPI , USB 2.0 , or HDMI interfaces to accommodate a wide range of mission computer architectures.
Optional stabilized mount providing limited-axis motion control for improved image tracking and steady footage.
Full stabilization option for precision imaging during high-dynamic maneuvers or long-range observation missions.
25.4 × 19 × 19 mm
20g to 30g
.png)
GreenSight EO/LWIR Camera is fully NDAA compliant, ensuring it meets the strictest U.S. government standards for security and reliability. Fully US-sourced and assembled, ensuring reliability, traceability, and regulatory compliance for defense applications.
